1510 Walk-Behind Carpet Extractor

One machine gives you interim surface cleaning and deep cleaning modes, plus ease of use and consistent performance. The Tennant 1510 Battery-Operated Walk-Behind Carpet Extractor features one-button operation and the capability to lock in top speed. Dual modes allow the operator to surface clean more frequently with faster drying time and deep clean for heavily soiled conditions.

Cleaning Type
Deep Clean, ReadySpace
Cleaning Path
22 in / 560 mm
Recovery Tank Capacity
21 gal / 79 L
There was an error adding item(s) to the cart. Please try again.
1510 Walk-Behind Carpet Extractor
There was an error adding item(s) to the cart. Please try again.

1510 FEATURES

1510/1530 Extractor easy operations

HIGHLIGHTS

  • Use deep cleaning mode for maximum soil removal and interim surface cleaning for shorter dry times.
  • Reduce operator training time with easy-to-use one-button start.
  • Lock in top cleaning speed to ensure consistent cleaning at the proper pace and eliminate the need for operator adjustments.
  • Extend cleaning time and cover more area with the wide cleaning path and extra-large recovery tanks.

1510 SPECIFICATIONS

  • Pressure: 100 psi / 6.9 Bar
  • Recovery Tank Capacity: 21 gal / 79 L
  • Solution Tank Capacity: 21 gal / 79 L
  • Machine Type: Walk-Behind
  • Power Source: Battery
  • Machine Width: 22 in / 559 mm
  • Cleaning Path: 22 in / 560 mm
  • Heated: No
  • Weight: 656 lb / 298 kg
  • Sound Level: As low as 72 dBA
  • Estimated Run Time: Up to 3 hours
  • Cleaning Type: Deep Clean, ReadySpace
  • Machine Length: 40 in / 1,016 mm
  • Machine Height: 42 in / 1,066 mm
Show more Show more

1510 KEY BENEFITS

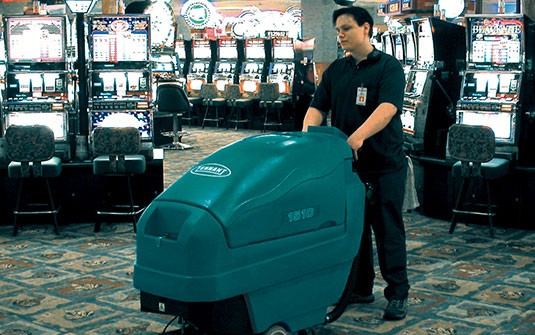

A 1510 Deep Carpet Extractor in a casino.

Reduce Cost to Clean

Use one machine for multiple cleaning tasks, and extend cleaning time between empty/fill cycles, improve efficiency, and reduce operator training time with this deep cleaning carpet extractor.

  • Use one machine for frequent interim maintenance and restorative deep cleaning.
  • Clean up to 4,500 ft2 / 418 m2 per hour with the wide 22 in / 560 mm cleaning path.
  • Reduce operator training time with simple one-button operation.
  • Clean longer between empty/fill cycles thanks to extra-large 21 gal / 79 L recovery tanks.
Office with carpeted flooring

Enhance Facility Image

Ensure consistent cleaning with locked in top cleaning speeds that help operators work at the proper pace.

1530 Carpet Extractor Control Panel

Easy Operation & Maintenance

Get a consistent clean with easy operation and dual-mode flexibility.

  • Start cleaning instantly with easy one-button operation.
  • Customize this deep cleaning extractor for your environment; Choose from a hand tool, upholstery tool, floor wand, solution hose and vacuum hose.
  • Lock in top cleaning speeds for a consistent clean at the correct pace.
  • Get maximum maneuverability with this compact extractor.

1510 PARTS

1001608 SEAL, .50, .50W 29.5L, ADH [D SHAPE] alt
1001608
SEAL, .50, .50W 29.5L, ADH [D SHAPE]
There was an error adding item(s) to the cart. Please try again.
630052 Shut-Off Float, 2-Ball alt
630052
Shut-Off Float, 2-Ball
There was an error adding item(s) to the cart. Please try again.
626092 Neoprene Vacuum Fan Gasket alt
626092
Neoprene Vacuum Fan Gasket
There was an error adding item(s) to the cart. Please try again.
1025106 24 Volt DC Electric Vacuum Fan Motor alt
1025106
24 Volt DC Electric Vacuum Fan Motor
There was an error adding item(s) to the cart. Please try again.
630119 SEAL, NEO, .12, .31W 15.99L, ADH alt
630119
SEAL, NEO, .12, .31W 15.99L, ADH
There was an error adding item(s) to the cart. Please try again.
630453 SEAL, RBR, CLSD, .13, .38W 05.6L, ADH alt
630453
SEAL, RBR, CLSD, .13, .38W 05.6L, ADH
There was an error adding item(s) to the cart. Please try again.
1049048 Neoprene, 4 Hole Swivel Caster alt
1049048
Neoprene, 4 Hole Swivel Caster
There was an error adding item(s) to the cart. Please try again.
607452 WHEEL, 08.0D 2.00W TPR alt
607452
WHEEL, 08.0D 2.00W TPR
There was an error adding item(s) to the cart. Please try again.
1007468 FAN, VACUUM, 5.7D, 024VDC, 3 STAGE [B] alt
1007468
FAN, VACUUM, 5.7D, 024VDC, 3 STAGE [B]
There was an error adding item(s) to the cart. Please try again.
240063 22" (56cm) Cyl Nylon 8SR Scrub Brush alt
240063
22" (56cm) Cyl Nylon 8SR Scrub Brush
There was an error adding item(s) to the cart. Please try again.
230409 BELT, SYNCHRONOUS, 18.75 [WF2800] alt
230409
BELT, SYNCHRONOUS, 18.75 [WF2800]
There was an error adding item(s) to the cart. Please try again.
1006924 FILTER, SOLTN, W/E90 FTG, 012MESH alt
1006924
FILTER, SOLTN, W/E90 FTG, 012MESH
There was an error adding item(s) to the cart. Please try again.
1007428 Stainless Steel Bowl Screen Filter alt
1007428
Stainless Steel Bowl Screen Filter
There was an error adding item(s) to the cart. Please try again.
180632 FILTER, SCREEN, IN-LINE STRAINER alt
180632
FILTER, SCREEN, IN-LINE STRAINER
There was an error adding item(s) to the cart. Please try again.
180638 FILTER, SCREEN, 125MESH, SLEEVE, NYL alt
180638
FILTER, SCREEN, 125MESH, SLEEVE, NYL
There was an error adding item(s) to the cart. Please try again.
1028953 Soil Transfer Roller alt
1028953
Soil Transfer Roller
There was an error adding item(s) to the cart. Please try again.
1042403 50 Foot Power Cord, Yellow alt
1042403
50 Foot Power Cord, Yellow
There was an error adding item(s) to the cart. Please try again.
130176 Strain Relief Cord Clip alt
130176
Strain Relief Cord Clip
There was an error adding item(s) to the cart. Please try again.
1036002 KNOB, STAR, 2.40D 5EAR, M10 X 50L STUD alt
1036002
KNOB, STAR, 2.40D 5EAR, M10 X 50L STUD
There was an error adding item(s) to the cart. Please try again.
1037380 ReadySpace Flush Nozzle alt
1037380
ReadySpace Flush Nozzle
There was an error adding item(s) to the cart. Please try again.
1072721 MOTOR, ELE, 115VDC 1200RPM .25HP 2.3A alt
1072721
MOTOR, ELE, 115VDC 1200RPM .25HP 2.3A
There was an error adding item(s) to the cart. Please try again.
1032018 MODULE, TIMER, 120VAC [TREX READYSPACE] alt
1032018
MODULE, TIMER, 120VAC [TREX READYSPACE]
There was an error adding item(s) to the cart. Please try again.
1031915 PUMP, SOLTN, ELE, 110VAC alt
1031915
PUMP, SOLTN, ELE, 110VAC
There was an error adding item(s) to the cart. Please try again.
1037846 MANIFOLD, SOLTN, 120 VOLT alt
1037846
MANIFOLD, SOLTN, 120 VOLT
There was an error adding item(s) to the cart. Please try again.
9004282 Belt Kit with Installation Tool - Qty 2 alt
9004282
Belt Kit with Installation Tool - Qty 2
There was an error adding item(s) to the cart. Please try again.
1038379 HOSE, VACUUM, WIR, 38.0ID X 335.0L, CLR alt
1038379
HOSE, VACUUM, WIR, 38.0ID X 335.0L, CLR
There was an error adding item(s) to the cart. Please try again.
1037756 HOSE, VACUUM, 1.50ID X 018.0L, CLR alt
1037756
HOSE, VACUUM, 1.50ID X 018.0L, CLR
There was an error adding item(s) to the cart. Please try again.
1038373 HOSE, VACUUM, WIR, 38.0ID X 570.0L, CLR alt
1038373
HOSE, VACUUM, WIR, 38.0ID X 570.0L, CLR
There was an error adding item(s) to the cart. Please try again.
1032555 HOSE, VACUUM, 1.50ID X 019.5L, 2CUFF,CLR alt
1032555
HOSE, VACUUM, 1.50ID X 019.5L, 2CUFF,CLR
There was an error adding item(s) to the cart. Please try again.
1035866 HOSE, RECVY, FORMED alt
1035866
HOSE, RECVY, FORMED
There was an error adding item(s) to the cart. Please try again.
1036063 HOSE, SOLTN, .25 ID, .453 OD, 56.0 L alt
1036063
HOSE, SOLTN, .25 ID, .453 OD, 56.0 L
There was an error adding item(s) to the cart. Please try again.
1036668 BUMPER, FRONT alt
1036668
BUMPER, FRONT
There was an error adding item(s) to the cart. Please try again.
