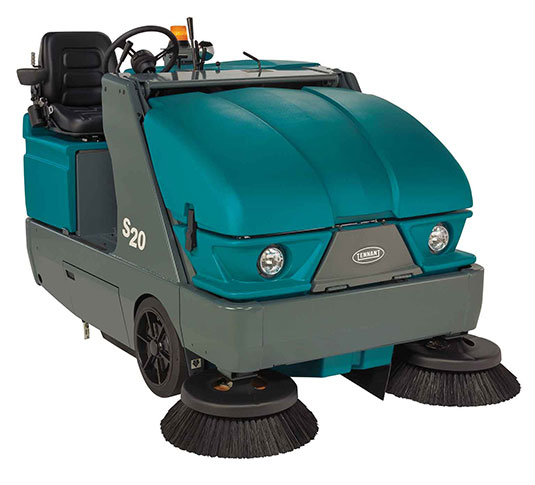

S20 Compact Ride-On Sweeper
Rely on the S20 Compact Ride-On Sweeper to deliver impressive performance – indoors or outdoors – even in harsh environments. Innovative Tennant technologies on the S20 reduce costs by extending run times, improving operator safety and simplifying maintenance. Help manage silica dust with our optional HEPA filtration system.
Cleaning Path
50 in / 1,270 mm, 62 in / 1,575 mm
Hopper Capacity
11.0 cubic ft / 310 L
Estimated Coverage/Productivity
Up to 163,680 sq ft / 15,120 sq m
There was an error adding item(s) to the cart. Please try again.
S20 FEATURES
HIGHLIGHTS
- Get exceptional dust control with exclusive SweepMax® cyclonic filtration that removes most dust and moisture.
- Clean your filter from the inside out, dislodging dust particles from deep within the filter pleats, with the ShakeMax® 360 filter shaker.
- Save time and training costs with intuitive, all-levers-forward operator controls and tool-free maintenance features.
- Achieve excellent cleaning performance, even in the most demanding environments.
- Get the performance of a mid-size ride-on sweeper with the maneuverability of a compact ride-on sweeper.
S20 SPECIFICATIONS
-
Estimated Coverage/Productivity: Up to 163,680 sq ft / 15,120 sq m
-
Dust Control Systems: Dry
-
Weight: 2,450 lb / 1,110 kg (with base battery)
-
Machine Type: Ride-On
-
Power Source: Battery, Gas, LPG, Diesel
-
Main Brush Dimensions: 36 in / 910 mm
-
Machine Width: 48.5 in / 1,230 mm
-
Propelling Speed: Up to 6 mph / 10 km/h
-
Dump Type: High Dump
-
Application: Indoor, Outdoor
-
Sweep Technology: Direct Throw
-
Air Technology / Broom Technology: Broom Technology
-
Sound Level: As low as 81 dBA +/- 1.7 dBA (diesel / gas / LPG), 80 dBA +/- 1.7 dBA (battery)
-
Estimated Run Time: Up to 4 hours or Continuous
-
Side Brush Dimensions: 23 in / 580 mm (diameter)
-
Hopper Capacity: 11.0 cubic ft / 310 L
-
Machine Length: 82.3 in / 2,090 mm
-
Cleaning Path: 50 in / 1,270 mm, 62 in / 1,575 mm
-
Machine Height: 82.1 in / 2,085 mm (with overhead guard), 49.5 in / 1,260 mm
S20 KEY BENEFITS
Reduce Cost to Clean
Exclusive Tennant technologies and efficient maintenance features increase reduce cost of operation and extend the life of your machine.
- Get longer run times and filter life with ShakeMax 360 filter shaker that dislodges dust particles from deep folds and improves air filtration.
- Get maximum uptime with no-tool, easy-open covers for quick servicing.
- Decrease operating costs with SweepMax cyclonic pre-filter that removes most dust and moisture before it reaches the canister filter.
- Deliver exceptional dust release with lower operating pressure with nanofiber canister filter that lasts up to three to five times longer than other filters.
- Reduce cleaning time using optional dual side brushes, 62 in / 1,575 mm sweeping path and high-capacity debris hopper.
Get Heavy-duty, Compact Performance
Get the sweeping performance of a mid-size in a dependable compact ride-on sweeper.
- Maneuver easily in tight spaces, indoors or outdoors.
- Expect long machine life from corrosion-proof, heavy-duty Duramer™ hopper and shrouds.
- Prolong machine life with wrap-around steel T-beam superstructure.
Easy Operation & Maintenance
Standard and optional features help maintenance faster and easier.
- Decrease downtime and costs with InstantAccess™ easy, which provides no-tool maintenance access to the Tennant S20 sweeper with easy-to-open covers.
- Reduce operator training time with simple, all-levers-forward operator controls.
- Achieve long machine life with the S20 Compact Ride-On Sweeper’s corrosion-proof, heavy-duty Duramer™ hopper and shrouds.
- Store optional high-performance vacuum wand inside sweeper for easy accessibility.
- Choose optional no-tool brush change to make maintenance faster and easier.
Maintain Health & Safety
The S20 Compact Ride-On Sweeper is designed with features to increase operator safety and improve your facility’s air quality.
- Improve air quality by filtering dust particles down to 0.5 microns at 99 percent efficiency with the SweepMax three-stage dust filtration system.
- Ensure operator safety and avoid damage to the vacuum with Thermo-Sentry™, which alerts the operator and shuts down air flow when it senses an increase in hopper temperature.
- Increase safety with a seat occupancy switch that shuts the engine off within seconds of the operator leaving the seat.
- Keep sounds levels low when cleaning with the Tennant S20 sweeper’s built-in muffler.
S20 PARTS
08013N
23" (58cm) Side Nylon Sweep Brush
There was an error adding item(s) to the cart. Please try again.
59431
23" (58cm) Side HD Poly Sweep Brush
There was an error adding item(s) to the cart. Please try again.
59432
23" (58cm) Side Flatwire Sweep Brush
There was an error adding item(s) to the cart. Please try again.
87333
36" (91cm) Cyl Polystr 24SR Sweep Brush
There was an error adding item(s) to the cart. Please try again.
370010
36" (91cm) Cyl Poly WDW Sweep Brush
There was an error adding item(s) to the cart. Please try again.
360295
TIRE ASSY, SOLID, 04.0 X 3.8 4.5BC 5BOLT
There was an error adding item(s) to the cart. Please try again.
368082
VR, BELT, V, 9.5MM 37.4L [KU]
There was an error adding item(s) to the cart. Please try again.
375047
VR, BELT, V, ALTERNATOR [KU]
There was an error adding item(s) to the cart. Please try again.
Silica Dust Exposure Control
Silica dust poses health and safety and compliance challenges in many work environments. Controlling the extremely fine dust is a complex task requiring both proper engineering controls and effective housekeeping practices. Tennant tools and technologies can play an important role in helping you manage the silica dust challenge, and can support silica exposure control plans that help you create safe, healthy, productive work environments, and work toward OSHA compliance.
S20 DOCUMENTATION
Intelligent Insights
IRIS® Asset Manager offers intelligent insights and key performance metrics to help manage and monitor your machines and make informed decisions to drive your cleaning operations forward.
