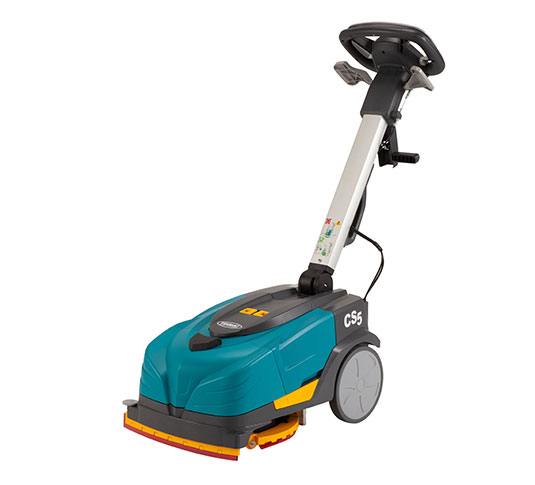

CS5 Micro-Scrubber

Drop the mop and get a better level of clean with the CS5 Micro-Scrubber. This innovative, 21st century scrubber eliminates many of the challenges of traditional mop and bucket cleaning. Instead of pushing around dirty water, the CS5's separate solution and recovery tanks deliver fresh water for scrubbing. Where traditional mop and bucket cleaning would often leave behind a slick, dangerous floor, the CS5 leaves a safer, drier floor by quietly and effectively recovering used water.

Cleaning Path
11 in / 280 mm
Solution Tank Capacity
1.3 gal / 5 L
Main Down Pressure
Up to 26 lb / 12 kg
There was an error adding item(s) to the cart. Please try again.
CS5 Micro-Scrubber
There was an error adding item(s) to the cart. Please try again.

CS5 FEATURES

CS5 Walk-Behind Micro-Scrubber Right Side Handle Angled
CS5 Walk-Behind Micro-Scrubber Handle Collapsed
HIGHLIGHTS
  • Clean and dry in forward or reverse motions with the CS5's two-squeegee design.
  • Operate under and around obstacles to clean hard-to-reach areas with the CS5's movable handle and compact size.
  • Get up to 50 minutes of run time with the CS5's lightweight, lithium-ion battery (up to 75 minutes with optional battery upgrade).

CS5 SPECIFICATIONS

  • Estimated Coverage/Productivity: Up to 10505 sq ft / 976 sq m
  • Weight: 43.65 lbs / 19.8 kg (with standard battery), 44.53 lbs / 20.2 kg (with optional battery)
  • Squeegee Width: 14.96 in/380 mm
  • Machine Type: Walk-Behind
  • Estimated Run Time: 50 mins (standard), Up to 75 mins (optional)
  • Power Sources: Lithium-Ion Battery
  • Battery Charger Type: Corded
  • Machine Length: 24.21 in / 615 m (handle upright), 30.31 in / 770 mm (handle folded)
  • Cleaning Path: 11 in / 280 mm
  • Application: Indoor
  • Recovery Tank Capacity: 1.3 gal / 5 L
  • Solution Tank Capacity: 1.3 gal / 5 L
  • Sound Level: As low as 63 dBA
  • Main Down Pressure: Up to 26 lb / 12 kg
  • Charger Type: Off-board
  • Pad RPMs: Up to 160 rpm
  • Machine Width: 16.24 in / 412.5 mm
  • Head Type: Disk
  • Machine Height: 41.29 in / 1049 mm (handle upright), 15.7 in / 399 mm (handle folded)
Show more Show more

*For CE compliance, sound level is measured as an A-weighted sound pressure level according to IOS 11201 and reported in accordance with ISO 4871



CS5 KEY BENEFITS

CS5 Walk-Behind Micro-Scrubber cleaning in hospital

Maintain Health & Safety

Reduce the risk of slip-and-fall accidents, improve employee health, and scrub with clean water utilising the health and safety features of the CS5 Micro-Scrubber.

  • Get better control over dirt and germs by avoiding dirty mop water with separate 1.3 gallon / 5 litre solution and recovery tanks.
  • Reduce slip-and-fall risk with a machine that effectively recovers water after cleaning, leaving a safer, drier floor.
  • Improve ergonomics, employee health and safety, and job satisfaction with motorised brush agitation that puts the strain of motion on the machine, not people.



CS5 Walk-Behind Micro-Scrubber collapsed for transport

Easy Operation & Maintenance

Clean small, hard-to-reach areas in forward or reverse with the easy to operate and maintain CS5 Micro-Scrubber.

  • Maximise machine uptime with a simple yet effective design that allows for easy maintenance.
  • Plug in and charge the CS5 at your convenience with its lithium-ion battery.
  • Easily clean hard-to-reach areas with a two-squeegee design that cleans in both forward and backward motions.
  • Get more options for transport and storage with the CS5's adjustable handle.
CS5 Walk-Behind Micro-Scrubber cleaning tile floor with grout lines

Enhance Facility Image

Improve the cleanliness of your facility by switching from mop-and-bucket cleaning to mechanised cleaning with the CS5.

  • Get better results with clean water from a separate solution tank.
  • Clean grout lines between tiles with the scrubbing action of a mechanised scrubber.
  • Improve cleanliness while using fewer chemicals and less water than traditional mop-and-bucket cleaning.

CS5 PARTS

SPPV02580 BRUSH, SCB, DISK, 28CM, PYP, SOFT alt
SPPV02580
BRUSH, SCB, DISK, 28CM, PYP, SOFT
There was an error adding item(s) to the cart. Please try again.
SPPV02438 BRUSH, SCB, DISK, 28CM, PYP, MED alt
SPPV02438
BRUSH, SCB, DISK, 28CM, PYP, MED
There was an error adding item(s) to the cart. Please try again.
SPPV02581 BRUSH, SCB, DISK, 28CM PYP, HARD alt
SPPV02581
BRUSH, SCB, DISK, 28CM PYP, HARD
There was an error adding item(s) to the cart. Please try again.
SPPV02583 PAD, SCB, 28CM, WHITE [PKG OF 5 PADS] alt
SPPV02583
PAD, SCB, 28CM, WHITE [PKG OF 5 PADS]
There was an error adding item(s) to the cart. Please try again.
SPPV02584 PAD, RED, BUFFING, 11.0/280 [BOX=4PC] alt
SPPV02584
PAD, RED, BUFFING, 11.0/280 [BOX=4PC]
There was an error adding item(s) to the cart. Please try again.
SPPV02582 DRIVER ASSY, PAD, 28CM, 3-LUG alt
SPPV02582
DRIVER ASSY, PAD, 28CM, 3-LUG
There was an error adding item(s) to the cart. Please try again.
KTRI06057 BATTERY, LI-ION, 36V, 5.5AH alt
KTRI06057
BATTERY, LI-ION, 36V, 5.5AH
There was an error adding item(s) to the cart. Please try again.
KTRI06058 BATTERY, LI-ION, 36V, 7.5AH alt
KTRI06058
BATTERY, LI-ION, 36V, 7.5AH
There was an error adding item(s) to the cart. Please try again.
BACA00263 CHARGER, 45VDC, 2A alt
BACA00263
CHARGER, 45VDC, 2A
There was an error adding item(s) to the cart. Please try again.
KTRI06148 BLADE KIT, SQGE, 28CM, LINATEX, STR alt
KTRI06148
BLADE KIT, SQGE, 28CM, LINATEX, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06149 BLADE KIT, SQGE, 28CM, LINATEX,PARABOLIC alt
KTRI06149
BLADE KIT, SQGE, 28CM, LINATEX,PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06150 BLADE KIT, SQGE, 28CM, RBR, STR alt
KTRI06150
BLADE KIT, SQGE, 28CM, RBR, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06151 BLADE KIT, SQGE, 28CM, GUM, PARABOLIC alt
KTRI06151
BLADE KIT, SQGE, 28CM, GUM, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06152 BLADE KIT, SQGE, 28CM, PYU, STR alt
KTRI06152
BLADE KIT, SQGE, 28CM, PYU, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06153 BLADE KIT, SQGE, 28CM, PYU, PARABOLIC alt
KTRI06153
BLADE KIT, SQGE, 28CM, PYU, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06154 SQUEEGEE ASSY, 28CM, LINATEX, STR alt
KTRI06154
SQUEEGEE ASSY, 28CM, LINATEX, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06155 SQUEEGEE ASSY, 28CM, LINATEX, PARABOLIC alt
KTRI06155
SQUEEGEE ASSY, 28CM, LINATEX, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
MPVR12348 FILTER, SOLTN, TANK alt
MPVR12348
FILTER, SOLTN, TANK
There was an error adding item(s) to the cart. Please try again.
MPVR12484 FILTER, AIR, INLET, VACUUM alt
MPVR12484
FILTER, AIR, INLET, VACUUM
There was an error adding item(s) to the cart. Please try again.
MPVR12311 WHEEL, FRONT, SQGE alt
MPVR12311
WHEEL, FRONT, SQGE
There was an error adding item(s) to the cart. Please try again.
TBFX01283 HOSE, FRONT, SQGE alt
TBFX01283
HOSE, FRONT, SQGE
There was an error adding item(s) to the cart. Please try again.
TBFX01282 HOSE, REAR, SQGE alt
TBFX01282
HOSE, REAR, SQGE
There was an error adding item(s) to the cart. Please try again.
KTRI06105 VALVE KIT, SUC [CS5] alt
KTRI06105
VALVE KIT, SUC [CS5]
There was an error adding item(s) to the cart. Please try again.
MOCC00477 MOTOR, BRUSH, 36VDC, 100W, IP44 alt
MOCC00477
MOTOR, BRUSH, 36VDC, 100W, IP44
There was an error adding item(s) to the cart. Please try again.
MOCC00481 VACUUM, MOTOR, 36VDC alt
MOCC00481
VACUUM, MOTOR, 36VDC
There was an error adding item(s) to the cart. Please try again.
PPEL00140 PUMP, SOLTN alt
PPEL00140
PUMP, SOLTN
There was an error adding item(s) to the cart. Please try again.
GUGO00622 GASKET, COVER, RECVY, TANK alt
GUGO00622
GASKET, COVER, RECVY, TANK
There was an error adding item(s) to the cart. Please try again.
KTRI06048 COVER KIT, RECVY, TANK alt
KTRI06048
COVER KIT, RECVY, TANK
There was an error adding item(s) to the cart. Please try again.
KTRI06097 TANK ASSY, RECVY [CS5] alt
KTRI06097
TANK ASSY, RECVY [CS5]
There was an error adding item(s) to the cart. Please try again.
KTRI06104 TANK ASSY, SOLTN [CS5] alt
KTRI06104
TANK ASSY, SOLTN [CS5]
There was an error adding item(s) to the cart. Please try again.

CS5 DOCUMENTATION

CS5 RELATED MACHINES

CS16 Micro Walk-Behind Floor Scrubber alt
CS16
Micro Walk-Behind Floor Scrubber

The CS16 is a compact, reliable and user-friendly micro-scrubber that provides productive cleaning in tight spaces. Its easy-to-use controls, low-profile design and ergonomic handle provide easy operation. The CS16 is ideal for hard-to-reach spaces in areas such as hospitals, retail stores, convenience stores and offices.

There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to1,300 sq m
Cleaning Path
350 mm
Main Down Pressure
Up to 25 kg
Solution Tank Capacity
15L
Sound Level
As low as 68 dBA (standard), As low as 66 dBA (Eco Mode)
T1 Walk-Behind Floor Scrubber alt
T1
Walk-Behind Floor Scrubber

Small, easy-to-store micro scrubber cleans hard floors in forward and reverse, and is less fatiguing than mop-and-bucket cleaning.

There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 1,480 sq m
Cleaning Path
380 mm
Main Down Pressure
Up to 15 kg
Solution Tank Capacity
11 L
Sound Level
As low as 72 dBA
T1B Battery Micro Walk-Behind Floor Scrubber alt
T1B
Battery Micro Walk-Behind Floor Scrubber

This battery-powered micro scrubber efficiently cleans hard floors without the worry of tangled cords, making it even easier to reach small, tight spaces.

There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 1,380 sq m
Cleaning Path
380 mm
Main Down Pressure
Up to 17 kg
Solution Tank Capacity
9.5 L
Sound Level
As low as 68 dBA

CS5 SERVICE

Check out our helpful tutorial videos designed to help you perform service and maintenance on your CS5 Micro-Scrubber.


Brush Service Video

Diverter Service Videos


Filter Service Videos

Hose Service Videos


Squeegee Service Videos

Storage Video


Tank Service Videos
