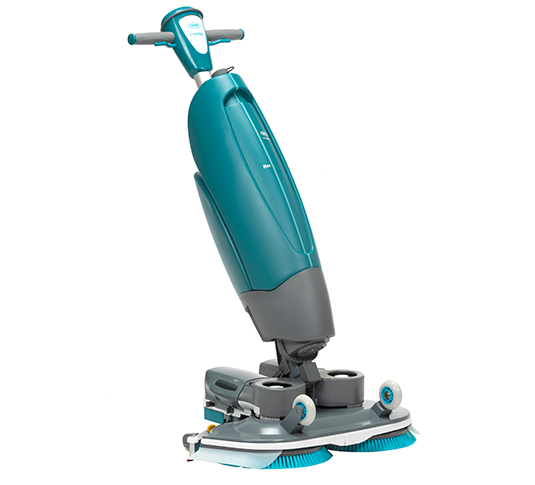

i-mop XXL Plus Walk-Behind Floor Scrubber

The maneuverability of a mop with the cleaning performance of a walk-behind floor scrubber. The i-mop® XXL Plus makes it possible to clean any floor surface with freedom of movement and great ease of use. No borders or boundaries. This machine isn't just designed for cleaning; it is designed for the cleaner.

Cleaning Path

24.4 in / 620 mm

Solution Tank Capacity

1.25 gal / 5 L

Main Down Pressure

Up to 70.4 lbs / 32 kg

There was an error adding item(s) to the cart. Please try again.

Leasing & Financing

Explore Rental Options

Find Parts & Consumables

i-mop XXL Plus Walk-Behind Floor Scrubber

There was an error adding item(s) to the cart. Please try again.

i-mop XXL Plus FEATURES

HIGHLIGHTS

Increase productivity, minimize foot traffic disruptions, create a more inviting facility and reduce the risk of slip and fall injuries with improved cleaning performance versus manual mopping.
Relieve the operator of extra weight with the i-balance mechanism and prevent the machine from falling.
Easily clean or replace squeegee with the quick change squeegee assembly.

i-mop XXL Plus SPECIFICATIONS

Estimated Coverage/Productivity: Up to 24750 sq ft / 2300 sq m
Weight: 79.6 lbs / 36.1 kg (with batteries and water)
Sound Level: As low as 79.6 dBA
Main Down Pressure: Up to 70.4 lbs / 32 kg
Charger Type: Off-board
Pad RPMs: Up to 350 rpm
Machine Width: 26.8 in / 680 mm
Head Type: Disk
Machine Height: 50 in / 1270 mm

Recovery Tank Capacity: 2 gal / 8 L
Solution Tank Capacity: 1.25 gal / 5 L
Machine Type: Walk-Behind
Estimated Run Time: Up to 70 mins
Power Source: Lithium-Ion Battery
Battery Charger Type: Battery
Machine Length: 14.2 in / 360.7 mm
Cleaning Path: 24.4 in / 620 mm
Application: Indoor

Show more Show more

i-mop XXL Plus KEY BENEFITS

Easy Operation & Maintenance

Easily clean floors with the flexibility of a mop and the power and speed of a scrubber.

Remove more surface soil than traditional mop and bucket cleaning with the i-mop XXL Plus’ balanced weight distribution and twin counter-rotating brushes.
Protect the vacuum motor from overflowing water with a floating ball in the filtration element that pops up and engages to close the recovery tank when it is full.
Keep your motor safe from water damage with an electronic switch that automatically shuts down the engine when held below a 32 degree angle.
Prevent your battery from draining with the i-mop's battery safe guard that ensures the machine remains off when in storage mode.

Maximize Runtime

Operate continuously when you rotate the use and charging of two sets of batteries.

Fast speed charger takes approximately 100 minutes to fully charge the grey batteries.
Get over one hour of runtime on a single charge and minimize downtime with a quick one-hour recharge time.
Clean 24/7 with a single machine when you charge and swap between two sets of batteries.

Minimize Environmental Impact

Dramatically reduces water and chemical consumption over mop and bucket cleaning.

Reduce chemical and water usage with the i-mop XXL Plus’ patented Fluid Management Systems.
Adjust to changing chemical needs in a matter of seconds by switching to a different solution tank.

i-mop XXL Plus PARTS

1237714

BRUSH, SOFT, LT BLU, 11.8 [XXL QTY 2]

There was an error adding item(s) to the cart. Please try again.

1237713

BRUSH, MED, BLU, 11.8 [XXL QTY2]

There was an error adding item(s) to the cart. Please try again.

1237715

BRUSH, HARD, RED, 11.8 [XXL QTY 2]

There was an error adding item(s) to the cart. Please try again.

1237717

PAD, WHITE, 10.6 [XXL BOX OF 10]

There was an error adding item(s) to the cart. Please try again.

1237718

PAD, RED, 10.6 [XXL BOX OF 10]

There was an error adding item(s) to the cart. Please try again.

1237720

PAD, BLU, 10.6 [XXL BOX OF 10]

There was an error adding item(s) to the cart. Please try again.

1237721

PAD, BLACK, 10.6 [XXL BOX OF 10]

There was an error adding item(s) to the cart. Please try again.

1237727

PAD, RED, 10.6 [XXL TWISTER QTY 2]

There was an error adding item(s) to the cart. Please try again.

1237726

PAD, WHITE, 10.6 [XXL TWISTER QTY 2]

There was an error adding item(s) to the cart. Please try again.

1237731

BLADE, SQGE, FRONT, 27.3 [XXL URE]

There was an error adding item(s) to the cart. Please try again.

1237729

BLADE, SQGE, FRONT, 27.3 [XXL LINA]

There was an error adding item(s) to the cart. Please try again.

1237732

BLADE, SQGE, REAR, 28.7 [XXL URE]

There was an error adding item(s) to the cart. Please try again.

1237730

BLADE, SQGE, REAR, 28.7 [XXL LINA]

There was an error adding item(s) to the cart. Please try again.

1237733

BATTERY KIT, [XXL I-MOP LEFT & RIGHT]

There was an error adding item(s) to the cart. Please try again.

1264257

CHRGR, BATT, 100-240V 9A [NA]

There was an error adding item(s) to the cart. Please try again.

9015246

DETERGENT-TTCS PURPLE, 2.5 [1 PICK=1CTN]

There was an error adding item(s) to the cart. Please try again.

9015247

DETERGENT-TTCS YELLOW, 2.5[1 PICK=1CTN]

There was an error adding item(s) to the cart. Please try again.

1265858

TANK KIT, SOLUTION [IMOP XXL W/BLUE CAP]

There was an error adding item(s) to the cart. Please try again.

1251765

FLOAT ASM, BALL [XL & XXL PLUS IMOP]

There was an error adding item(s) to the cart. Please try again.

1265856

SQUEEGEE ASSY, SCRBR, [I-MOP XXL]

There was an error adding item(s) to the cart. Please try again.

1265857

SPLASH GUARD KIT, LH & RH [I-MOP XXL]

There was an error adding item(s) to the cart. Please try again.

1232094

CHARGER, WALL [i-mop 3 LAYER]

There was an error adding item(s) to the cart. Please try again.

i-mop XXL Plus DOCUMENTATION

i-mop XXL Plus RELATED MACHINES

Estimated Coverage/Productivity

Cleaning Path

Main Down Pressure

Solution Tank Capacity

Sound Level

T1B

Battery Walk-Behind Micro Scrubber

This battery-powered micro scrubber efficiently cleans hard floors without the worry of tangled cords, making it even easier to reach small, tight spaces.

There was an error adding item(s) to the cart. Please try again.

Estimated Coverage/Productivity

Up to 14875 sq ft / 1380 sq m

Cleaning Path

15 in / 380 mm

Main Down Pressure

Up to 38 lb / 17 kg

Solution Tank Capacity

2.5 gal / 9.5 L

Sound Level

As low as 68 dBA

Walk-Behind Compact Floor Scrubber

This nimble disk floor scrubber is small enough to clean congested spaces, and its unique storage and transportation features simplify route cleaning.

There was an error adding item(s) to the cart. Please try again.

Estimated Coverage/Productivity

Up to 20230 sq ft / 1900 sq m

Cleaning Path

17 in / 430 mm

Main Down Pressure

Up to 50 lb / 23 kg

Solution Tank Capacity

7 gal / 26 L

Sound Level

As low as 68 dBA

T300

Walk-Behind Floor Scrubber

With the most available options for product configuration, this walk-behind floor scrubber also adapts to multiple cleaning applications including porous stone, grout and finished concrete.

There was an error adding item(s) to the cart. Please try again.

Estimated Coverage/Productivity

Up to 24000 sq ft / 2230 sq m

Cleaning Path

17 in / 430 mm, 20 in / 500 mm, 24 in / 600 mm

Main Down Pressure

Up to 109 lb / 49 kg

Solution Tank Capacity

11 gal / 42 L

Sound Level

As low as 66.4 dBA (quiet mode 57.6)

i-mop XXL Plus SERVICE

Keeping You Up & Running

Keep your Tennant equipment running at peak performance, limit downtime and reduce your overall cost to clean with a TennantTrue^® Service and Maintenance Plan.
