CS5 Walk-Behind Micro-Scrubber Overview
Videos
CS5 Walk-Behind Micro-Scrubber Demo
Videos
CS5 Demonstration
Videos
CS5 Operator Training Video
Videos
CS5 Walk-Behind Micro-Scrubber Dirt After Mopping
Videos
CS5 Walk-Behind Micro-Scrubber Feature Views
Videos
CS5 Walk-Behind Micro-Scrubber Transportable
Videos
CS5 Walk-Behind Micro-Scrubber Reverse Dry
Videos
CS5 Walk-Behind Micro-Scrubber Lithium-Ion Battery
Videos
CS5 Walk-Behind Micro-Scrubber Compact
Videos
CS5 Walk-Behind Micro-Scrubber Adjustable Handle
Videos
- View all
- View photos
- View videos

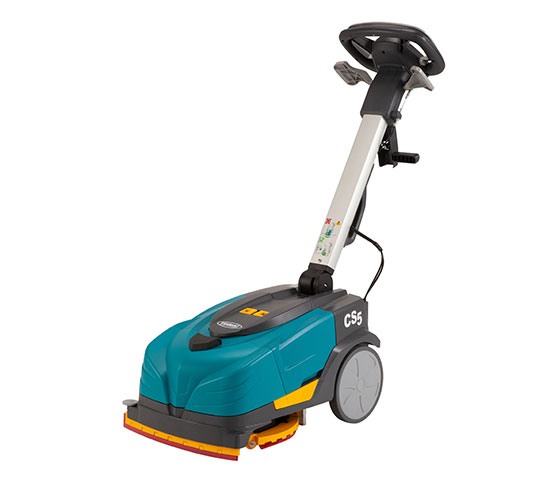

CS5 Micro Scrubber-Dryer
Drop the mop and get a better level of clean with the CS5 Micro-Scrubber-Dryer. This innovative, 21st century Scrubber-Dryer eliminates many of the challenges of traditional mop and bucket cleaning. Instead of pushing around dirty water, the CS5's separate solution and recovery tanks deliver fresh water for scrubbing. Where traditional mop and bucket cleaning would often leave behind a slick, dangerous floor, the CS5 leaves a safer, drier floor by quietly and effectively recovering used water.
Cleaning path
280 mm
Solution tank capacity (l)
5 L
Main Down Pressure
Up to 12 kg
There was an error adding item(s) to the cart. Please try again.
CS5 FEATURES
HIGHLIGHTS
- Clean and dry in forward or reverse motions with the CS5's two-squeegee design.
- Operate under and around obstacles to clean hard-to-reach areas with the CS5's movable handle and compact size.
- Get up to 50 minutes of run time with the CS5's lightweight, lithium-ion battery (up to 75 minutes with optional battery upgrade).
CS5 SPECIFICATIONS
-
Estimated Coverage/Productivity: Up to 976 sq m
-
Weight: 19.8 kg (with standard battery), 20.2 kg (with optional battery)
-
Sound level: As low as 63 dBA
-
Main Down Pressure: Up to 12 kg
-
Charger type: Off-board
-
Pad RPMs: Up to 160 rpm
-
Machine Length: 615 m (handle upright), 770 mm (handle folded)
-
Cleaning path: 280 mm
-
Application: Indoor
-
Recovery tank capacity (l): 5 L
-
Solution tank capacity (l): 5 L
-
Machine Type: Walk-Behind
-
Estimated Run Time: Up to 50 mins (standard), Up to 75 mins (optional)
-
Power Source: Lithium-Ion Battery
-
Machine Width: 412.5 mm
-
Head Types: Disk
-
Machine Height: 1049 mm (handle upright), 399 mm (handle folded)
*For CE compliance, sound level is measured as an A-weighted sound pressure level according to IOS 11201 and reported in accordance with ISO 4871
CS5 KEY BENEFITS
Maintain Health & Safety
Reduce the risk of slip-and-fall accidents, improve employee health, and scrub with clean water utilising the health and safety features of the CS5 Micro-Scrubber.
- Get better control over dirt and germs by avoiding dirty mop water with separate 1.3 gallon / 5 litre solution and recovery tanks.
- Reduce slip-and-fall risk with a machine that effectively recovers water after cleaning, leaving a safer, drier floor.
- Improve ergonomics, employee health and safety, and job satisfaction with motorised brush agitation that puts the strain of motion on the machine, not people.
Easy Operation & Maintenance
Clean small, hard-to-reach areas in forward or reverse with the easy to operate and maintain CS5 Micro-Scrubber.
- Maximise machine uptime with a simple yet effective design that allows for easy maintenance.
- Plug in and charge the CS5 at your convenience with its lithium-ion battery.
- Easily clean hard-to-reach areas with a two-squeegee design that cleans in both forward and backward motions.
- Get more options for transport and storage with the CS5's adjustable handle.
Enhance Facility Image
Improve the cleanliness of your facility by switching from mop-and-bucket cleaning to mechanised cleaning with the CS5.
- Get better results with clean water from a separate solution tank.
- Clean grout lines between tiles with the scrubbing action of a mechanised scrubber.
- Improve cleanliness while using fewer chemicals and less water than traditional mop-and-bucket cleaning.
CS5 PARTS
SPPV02580
BRUSH, SCB, DISK, 28CM, PYP, SOFT
There was an error adding item(s) to the cart. Please try again.
SPPV02438
BRUSH, SCB, DISK, 28CM, PYP, MED
There was an error adding item(s) to the cart. Please try again.
SPPV02581
BRUSH, SCB, DISK, 28CM PYP, HARD
There was an error adding item(s) to the cart. Please try again.
SPPV02583
PAD, SCB, 28CM, WHITE [PKG OF 5 PADS]
There was an error adding item(s) to the cart. Please try again.
SPPV02584
PAD, RED, BUFFING, 11.0/280 [BOX=4PC]
There was an error adding item(s) to the cart. Please try again.
SPPV02582
DRIVER ASSY, PAD, 28CM, 3-LUG
There was an error adding item(s) to the cart. Please try again.
KTRI06057
BATTERY, LI-ION, 36V, 5.5AH
There was an error adding item(s) to the cart. Please try again.
KTRI06058
BATTERY, LI-ION, 36V, 7.5AH
There was an error adding item(s) to the cart. Please try again.
KTRI06148
BLADE KIT, SQGE, 28CM, LINATEX, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06149
BLADE KIT, SQGE, 28CM, LINATEX,PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06150
BLADE KIT, SQGE, 28CM, RBR, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06151
BLADE KIT, SQGE, 28CM, GUM, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06152
BLADE KIT, SQGE, 28CM, PYU, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06153
BLADE KIT, SQGE, 28CM, PYU, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
KTRI06154
SQUEEGEE ASSY, 28CM, LINATEX, STR
There was an error adding item(s) to the cart. Please try again.
KTRI06155
SQUEEGEE ASSY, 28CM, LINATEX, PARABOLIC
There was an error adding item(s) to the cart. Please try again.
MPVR12484
FILTER, AIR, INLET, VACUUM
There was an error adding item(s) to the cart. Please try again.
MOCC00477
MOTOR, BRUSH, 36VDC, 100W, IP44
There was an error adding item(s) to the cart. Please try again.
GUGO00622
GASKET, COVER, RECVY, TANK
There was an error adding item(s) to the cart. Please try again.
CS5 DOCUMENTATION
GDI Cuts Cleaning Time with Tennant CS5 Micro-Scrubber
GDI Integrated Facility Services needed to find a mechanized solution to streamline floor cleaning and provide uniform results. By choosing the Tennant CS5 Micro-Scrubber, they were able to reduce overall cleaning time and improve cleaning performance.
CS5 SERVICE
Check out our helpful tutorial videos designed to help you perform service and maintenance on your CS5 Micro-Scrubber.
Brush Service Video
Diverter Service Videos
Filter Service Videos
Hose Service Videos
Squeegee Service Videos
Storage Video
Tank Service Videos
