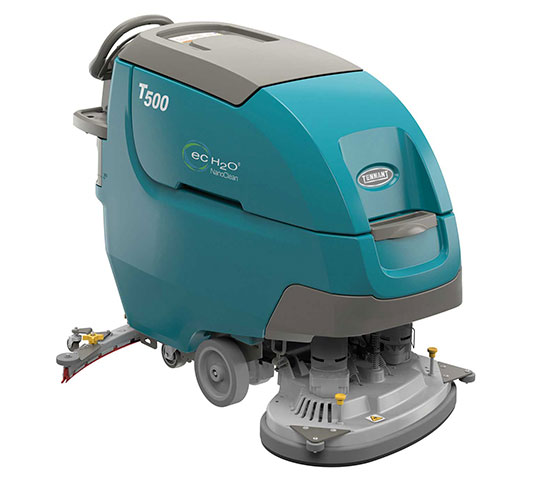

T500 Walk-Behind Floor Scrubber-Dryer

Deliver predictable results, extend machine life, and reduce cost of ownership with a suite of innovative technologies. The T500 Walk-Behind Floor Scrubber-Dryer provides optimal performance and consistent results on virtually any hard floor surface condition while lowering cleaning costs. Help make your cleaning operation more productive and consistent by choosing from multiple cleaning heads, including an orbital head, and a variety of optional innovative technologies. Model T500 replaces Model T5.

Cleaning path
650 mm, 700 mm, 800 mm
Solution tank capacity (l)
85 L
Main Down Pressure
Up to 77 kg
There was an error adding item(s) to the cart. Please try again.
T500 Walk-Behind Floor Scrubber-Dryer
There was an error adding item(s) to the cart. Please try again.

T500 FEATURES

T500 Pro-Panel
T500 Illustration

CLEANING TECHNOLOGY




HIGHLIGHTS

  • Deliver predictable cleaning results with operator lock-out, on-demand tutorial videos and Zone Settings™ with customizable labels using Pro-Panel™ LCD touch-screen technology. Available on T500 only.
  • Increase battery life, extend battery run-time and easily optimise long-term battery performance with a nearly maintenance-free automatic battery watering system.
  • Choose from disc, cylindrical or orbital scrubbing heads in a range of cleaning path widths on this mid-sized scrubber.
  • Effectively remove floor finish without expensive stripping chemicals with the 28 in / 700 mm orbital cleaning head option, which includes a 2,000 hour / 3-year isolator warranty.

T500 SPECIFICATIONS

  • Estimated Coverage/Productivity: Up to 3270 sq m
  • Solution tank capacity (l): 85 L
  • Sound level: As low as 66.5 dBA, As low as 61.7 dBA (quiet mode)
  • Main Down Pressure: Up to 77 kg
  • Charger type: On-board
  • Pad RPMs: Up to 220 rpm (disk), Up to 1500 rpm (cylindrical), Up to 2200 rmp (orbital)
  • Cleaning path: 650 mm, 700 mm, 800 mm
  • Recovery tank capacity (l): 102 L
  • Squeegee Width: 38.3 in / 973 mm, 41.3 in / 1051 mm, 46.6 in / 1184 mm
  • Machine Type: Walk-Behind
  • Estimated Run Time: Up to 5.9 hours
  • Power Source: Battery
  • Head Types: Disk, Cylindrical, Orbital
  • Application: Indoor
Show more Show more

T500 KEY BENEFITS

Video will go here

Reduce Cost to Clean

​​Extend machine life and reduce costs of ownership with an innovative suite of technologies and durable components.

  • Maximise battery productivity with the exclusive patent-pending Smart-Fill™ technology, an optional on-board, automatic battery watering system.
  • Clean virtually any hard surface condition and maximise your return on investment with a wide range of cleaning heads, including a 28 in / 700 mm orbital option.
  • Help reduce breakdowns and simplify training and preventative daily maintenance with yellow touch-points on common maintenance areas.
T500 Orbital - VCT

Maintain Health & Safety

​​Innovative features maintain health and safety of operators, customers and the environment.

  • Virtually eliminate the need for caustic floor stripping chemicals with the use of the orbital scrub head which allows for chemical-free floor finish removal.
  • Reduce handling of daily cleaning chemicals with optional ec-H2O NanoClean® technology.*
  • Improve operator ergonomics through updated and enhanced controls that put the propel switch and speed setting within easy reach.
  • Prevent safety issues related to overfilling batteries with Smart-Fill automatic battery watering, which fills batteries correctly every time.

Enhance Facility Image

​​Deliver predictable results and maintain the cleanliness and appearance of your floor, enhancing your facility's image.​

  • Evenly and effectively remove floor finish with one of the highest orbital standard down pressure settings at 170 lb / 77 kg.
  • Validate cleaning, differentiate your operations and develop optimal cleaning programme protocols with optional IRIS® Asset Manager.
  • Reduce risk of slips and falls with redesigned squeegee and integrated p-trap that improves water pick‐up and prevents water drips after cleaning.​
  • Easily standardise cleaning operations with programmable Zone Settings and customisable labels for your facility. Available on T500 only.
  • Quickly and easily clean recovery tank with optional on-board spray nozzle and hose, which provides remote access to water as needed. Available on T500 only.
T500 Auto-Fill

Minimise Environmental Impact

​​Reduce environmental impact through detergent-free cleaning technologies.

  • Decrease the use of daily floor cleaning chemicals and the amount of water needed with optional detergent-free ec-H2O® NanoClean technology.
  • Reduce time spent trying to accurately fill the solution tank with auto-fill and water level monitor, which ensures the tank fills to capacity and shuts off automatically. Available on T500 only.
  • Minimise noise levels to as low as 62 dBA and allow for easy daytime cleaning without disruption with the Quiet-Mode™ low dBA setting. Available on T500 only.

T500 PARTS

1220221 DRIVER ASSY, PAD, 14.0D, BRUSH alt
1220221
DRIVER ASSY, PAD, 14.0D, BRUSH
There was an error adding item(s) to the cart. Please try again.

T500 DOCUMENTATION

Intelligent Insights

IRIS® Asset Manager offers intelligent insights and key performance metrics to help manage and monitor your machines and make informed decisions to drive your cleaning operations forward.

See How it Works

T500 RELATED MACHINES

T300 Walk-Behind Floor Scrubber-Dryer alt
T300
Walk-Behind Floor Scrubber-Dryer

With the most available options for product configuration, this walk-behind floor Scrubber-Dryer also adapts to multiple cleaning applications including porous stone, grout and finished concrete.

There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 2230 sq m
Cleaning path
500 mm, 430 mm, 600 mm
Main Down Pressure
Up to 49 kg
Solution tank capacity (l)
42 L
Sound level
As low as 66.4 dBA, As low as 57.6 dBA (quiet mode)
T600 Walk-Behind Floor Scrubber-Dryer alt
T600
Walk-Behind Floor Scrubber-Dryer

Delivering cleaning performance you can count on day in and day out with a durable design and a suite of productivity-boosting features.

There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 4415 sq m
Cleaning path
800 mm, 900 mm, 700 mm
Main Down Pressure
Up to 41 kg (cylindrical), Up to 136 kg (disk)
Solution tank capacity (l)
121 L
Sound level
As low as 69.2 dBA

T500 SERVICE

Tennant Service and Maintenance Plan
Keeping You Up & Running

Keep your Tennant equipment running at peak performance, limit downtime and reduce your overall cost to clean with a TennantTrue® Service and Maintenance Plan.

Service Plans

REQUEST INFO


*ec-H2O NanoClean® technology is not suitable for all soils, including heavy concentrations of fats and oils. Depending on the type of soil, conventional chemical cleaners may be required.
