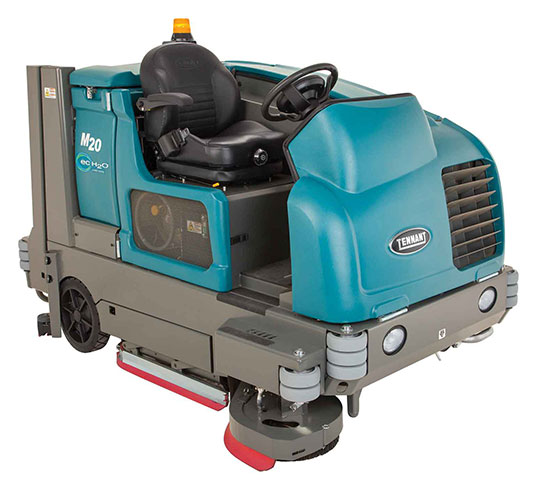

M20 Ride-On Sweeper-Scrubber
Improve productivity by delivering exceptional sweeping and scrubbing performance and enjoy health and safety benefits with the M20 Ride-On Sweeper-Scrubber. The M20 is easy to operate and maintain, and quickly enhances your facility's image by cleaning in a single pass – wet or dry.
Cleaning path
1020 mm, 1370 mm, 1420 mm
Solution tank capacity (l)
212 L, 280 L (with ES)
Hopper Capacity
110 L
There was an error adding item(s) to the cart. Please try again.
M20 FEATURES
CLEANING TECHNOLOGY
HIGHLIGHTS
- Effectively clean in just one pass – wet or dry – with FloorSmart® integrated cleaning system technology.
- Achieve consistent cleaning results with MaxPro²™ hydraulic technology.
- Use up to 70 percent less water and clean up to three times longer on a single tank with Tennant’s innovative ec-H2O™ technology.
- Increase visibility with cab-forward design, open sightlines, and steering-wheel-mounted controls.
- Provide an easy operator and maintenance experience with intuitive controls and easy-to-identify yellow touch points.
M20 SPECIFICATIONS
-
Estimated Coverage/Productivity: Up to 190080 sq ft / 17560 sq m
-
Recovery tank capacity (l): 276 L
-
Filter Systems: Panel
-
Machine Type: Ride-On
-
Side Brush Dimensions: 410 mm (scrub), 21 in / 530 mm (sweep)
-
Hopper Capacity: 110 L
-
Cleaning path: 1020 mm, 1370 mm, 1420 mm
-
Sweep Technology: Overthrow
-
Solution tank capacity (l): 212 L, 280 L (with ES)
-
Sound level: As low as 84 dBA
-
Power Source: Gas, LPG, Diesel
-
Main Brush Dimensions: 1020 mm
-
Propelling Speed: Up to 12.9 km/h
-
Application: Indoor, Outdoor
M20 KEY BENEFITS
Reduce Cost to Clean
Reduce cost of ownership with this large integrated sweeper-scrubber’s versatile cleaning performance, innovative technologies, and quality construction.
- Reduce the need for multiple machines with FloorSmart® integrated cleaning system technology that combining sweeping and scrubbing functions.
- Save on chemical purchasing, storing, handling and mixing with water-saving ec-H2O technology, which electrically activates water into an innovative cleaning solution.
- Increase productivity by expanding your cleaning path from 40 in / 1,020 mm up to 54 in / 1,370 mm with an optional scrubbing side brush.
- Protect your asset from damage upon impact with a heavy-duty wraparound steel bumper and optional rear squeegee guard.
- Extend machine life with a heavy-gauge steel frame and corrosion-resistant Duramer™ body construction.
Maintain Health & Safety
Protect employees, facilities and operators with this sweeper scrubber’s eyes-forward functioning, built-in safety features, improved floor traction when using ec-H2O and more.
- Eliminate the need to manually handle debris with the high-capacity (3.9 ft³ / 110 L), multi-level hydraulic rear hopper.
- Ensure safe operation by viewing your cleaning path without having to turn around in seat with PerformanceView™ featured on the optional Pro-Panel™.
- Operate safely and comfortably with open sightlines, spacious operator compartment and full front shroud.
- Protect operators from falling objects and debris with an optional overhead guard.
- Maintain air quality by delivering exceptional dust control during both wet and dry sweeping with the wet / dry synthetic fibre panel filter.
Enhance Facility Image
Achieve consistent cleaning results, even in the toughest industrial environments, with the effective sweeping and scrubbing capabilities of this ride-on sweeper-scrubber.
- Deliver consistent power to the brush drive motors, regardless of floor surface changes, with MaxPro² hydraulic technology.
- Get a total floor clean with excellent sweeping, scrubbing, water recovery and edge-cleaning performance.
- Leave a clean path and achieve exceptional water pickup with a Dura-Track™ parabolic squeegee.
- Easily blast-clean hard-to-reach areas with the optional high-powered pressure washer.
- Protect your facility and machine from damage with cushioned corner rollers.
Easy Operation & Maintenance
Deliver consistent, industrial-strength cleaning, whether sweeping or scrubbing with this easy-to-operate and maintain ride-on sweeper-scrubber.
- Reduce training and simplify operation with the Touch-n-Go™ control module, featuring a 1-Step™ start button.
- Transform cleaning operations with optional Pro-Panel technology, which integrates multiple cleaning settings and on-demand videos into an intuitive, highly-visible touchscreen interface.
- Easily care for solution and recovery tanks with design that allows for complete visual inspection and cleanout.
- Simplify preventative maintenance with easy-to-identify yellow maintenance touch points and no-tool squeegee and brush access.
- Make machine spray-down and clean-up quick and easy with the optional spray hose.
Silica Dust Exposure Control
Silica dust poses health and safety and compliance challenges in many work environments. Controlling the extremely fine dust is a complex task requiring both proper engineering controls and effective housekeeping practices. Tennant tools and technologies can play an important role in helping you manage the silica dust challenge, and can support silica exposure control plans that help you create safe, healthy, productive work environments, and work toward OSHA compliance.
M20 PARTS
1026223
40" (102cm) Cyl Poly 24SR Swp/Scr Brush
There was an error adding item(s) to the cart. Please try again.
1030969
40" (102cm) Cyl HPoly 24SR Swp/Scr Brush
There was an error adding item(s) to the cart. Please try again.
1221543
BRUSH ASSY, DISK, SCB, 16.0D, SAB
There was an error adding item(s) to the cart. Please try again.
1025005
Linatex Side Brush Squeegee 40" 48"
There was an error adding item(s) to the cart. Please try again.
1031011
Linatex Left and Right Squeegee 40" 48"
There was an error adding item(s) to the cart. Please try again.
1021579
10 Micron Hydraulic Filter Assembly
There was an error adding item(s) to the cart. Please try again.
1027290
FILTER, SOLTN, 020MESH, PM12 3.1D 02.6L
There was an error adding item(s) to the cart. Please try again.
1048295AM
Wet Panel Filter- 4.2" X 20" X 30"
There was an error adding item(s) to the cart. Please try again.
371972
VR, ELEMENT, FLTR, OIL, SPIN-ON
There was an error adding item(s) to the cart. Please try again.
M20 DOCUMENTATION
Intelligent Insights
IRIS® Asset Manager offers intelligent insights and key performance metrics to help manage and monitor your machines and make informed decisions to drive your cleaning operations forward.
M20 RELATED MACHINES
M17
Battery-Powered Ride-On Sweeper-Scrubber
This battery-powered sweeper-scrubber offers fume-free operation and extended cleaning time to increase productivity.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 162140 / 14980 sq m (sweeping), Up to 116160 sq ft / 10730 sq m (scrubbing)
Hopper Capacity
85 L
Cleaning path
915 mm, 1015 mm, 1220 mm, 1700 mm
Solution tank capacity (l)
285 L, 435 L (with ES)
Sound level
As low as 75 dBA
Power Source
Battery
M30
Ride-On Sweeper-Scrubber
Cleans the harshest, large-scale industrial environments with a wide cleaning path and a tank and hopper with generous capacity.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 218240 sq ft / 20160 sq m
Hopper Capacity
198 L
Cleaning path
1575 mm, 1220 mm, 1625 mm
Solution tank capacity (l)
379 L (with ES), 284 L
Sound level
As low as 84 dBA
Power Source
Diesel, Gas, LPG
T20
Industrial Ride-On Floor Scrubber-Dryer
Built with cost-saving innovations to clean heavy grease and grime found in large warehouses, factories, municipalities and multi-storey car parks.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 17560 sq m
Hopper Capacity
Cleaning path
1020 mm, 1070 mm, 1370 mm, 1420 mm
Solution tank capacity (l)
303 L (standard), 473 L (with ES)
Sound level
As low as 84 dBA
Power Source
Diesel, Gas, LPG
M20 SERVICE
Keeping You Up & Running
Keep your Tennant equipment running at peak performance, limit downtime and reduce your overall cost to clean with a TennantTrue® Service and Maintenance Plan.
