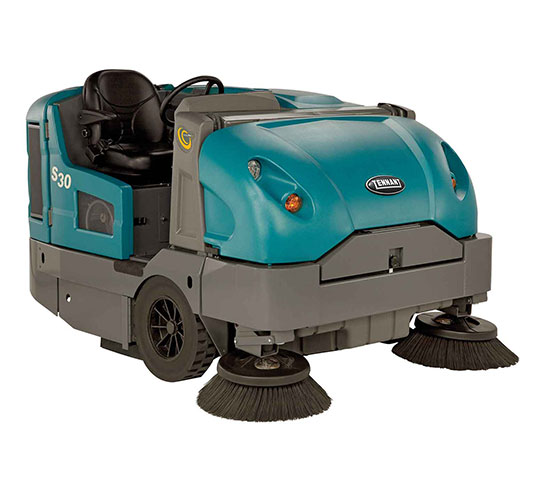

S30 Ride-On Sweeper
Easily pick up everything from cement dust to heavy debris with the powerful S30 Ride-On Sweeper. Achieve maximum performance and consistent cleaning results in the toughest applications – indoors or outdoors – with Tennant's three-stage SweepMax® Plus dust control system. Help manage silica dust with our optional HEPA filtration system.
Cleaning Path
62.5 in / 1588 mm, 80 in / 2032 mm
Hopper Capacity
14.0 cubic ft / 395 L
Estimated Coverage/Productivity
Up to 281600 sq ft / 26010 sq m
There was an error adding item(s) to the cart. Please try again.
S30 FEATURES
HIGHLIGHTS
- Maximize performance with three-stage SweepMax Plus cyclonic filtration and dust control system.
- Get outstanding performance indoors and outdoors, picking up everything from cement dust to heavy debris — indoors or outdoors.
- Achieve maximum efficiency with II-Speed™ sweeping technology that allows the operator to increase brush and vacuum speeds up to 20 percent to remove heavier debris.
- Get a quieter clean with 80 DBA noise level, one of the lowest in class for an engine-powered sweeper.
- Take advantage of the only sweeper with a cyclonics pre-filter stage of dust control, which removes an additional 90 percent of dust particles from the air stream before reaching the filter.
S30 SPECIFICATIONS
-
Estimated Coverage/Productivity: Up to 281600 sq ft / 26010 sq m
-
Dust Control Systems: Dry, Wet
-
Sound Level: As low as 80 dBA +/1 3.0 dBA (G/LP), 83 dBA +/- 3.0 dBA (Diesel)
-
Estimated Run Time: Continuous
-
Side Brush Dimensions: 26 in / 660 mm (diameter)
-
Hopper Capacity: 14.0 cubic ft / 395 L
-
Cleaning Path: 62.5 in / 1588 mm, 80 in / 2032 mm
-
Application: Indoor & Outdoor
-
Sweep Technology: Direct Throw
-
Air Technology / Broom Technology: Broom Technology
-
Machine Type: Ride-On
-
Power Source: Gas, LPG, Diesel
-
Main Brush Dimensions: 45 in / 1145 mm
-
Propelling Speed: Up to 8 mph / 12.9 km/h
-
Dump Type: High Dump
S30 KEY BENEFITS
Reduce Cost to Clean
Maximize cleaning time with the exclusive three-stage SweepMax Plus cyclonic dry dust control system and maintenance features designed to maximize uptime.
- Achieve higher productivity with the optimized SweepMax Plus dust control system, which prevents more dust from going to the filter, resulting in less shake backs and more time spent sweeping.
- Keep bulky debris and moisture from reaching the filter by removing up to 90 percent of particulates from the air stream with the patented Perma-filter™ dust control stage.
- Minimize the maintenance time and cost of simple machine checks with no-tool InstantAccess™ filter and cyclone access.
Maintain Health & Safety
Improve air quality and reduce the potential for accidents with a ride-on sweeper built to last. Dry sweeping with high-efficiency HEPA filtration options is an OSHA-allowable method in applications where wet sweeping or HEPA vacuums aren't feasible.
- Maintain employee and customer health with improved air quality and dust control with a Donaldson Ultra-Web®* MERV 15-rated nanofiber filter that loads and shakes back more effectively and filters sub-micron dust particulates up to 0.5 microns at 99 percent efficiency.
- Choose Tennant's high-efficiency HEPA filtration for dry sweeping, an OSHA-allowable dust control method when wet sweeping or HEPA vacuums aren’t feasible.
- Reduce potential slip-and-fall accidents by your employees or customers by keeping floors clean of dust and debris.
- Ensure operator safety and avoid damage to the vacuum with Thermo-Sentry™, which alerts the operator and shuts down air flow when it senses an increase in hopper temperature.
- Keep operators safe with an optional FOPS certified cabin, available with heat and air conditioning for year-round comfort in most climates.
Easy Operation & Maintenance
The Tennant S30 sweeper's operator-friendly design and easy-to-access maintenance touch points allow for easier, more efficient operation and less maintenance downtime.
- Get maximum operator visibility with standard headlights and taillights and open sightlines.
- Avoid potential overheating with ThermoSentry heat sensor that alerts operator to sudden temperature elevations in the hopper.
- Reduce training time, even for novice operators, with all-levers-forward control layout and optional one-button worry-free operation.
- Keep operators safe and comfortable with optional FOPS-certified cabin.
- Reduce operator fatigue with cab-forward Ergospace™ compartment design that includes ergonomic seat, horn in the steering wheel center, and propel pedal.
- Reduce maintenance downtime with easy, no-tool brush removal and change.
- Perform simple machine checks quickly with InstantAccess filter and cyclone access that requires no tools.
Silica Dust Exposure Control
Silica dust poses health and safety and compliance challenges in many work environments. Controlling the extremely fine dust is a complex task requiring both proper engineering controls and effective housekeeping practices. Tennant tools and technologies can play an important role in helping you manage the silica dust challenge, and can support silica exposure control plans that help you create safe, healthy, productive work environments, and work toward OSHA compliance.
S30 PARTS
54922
45" (114cm) Cyl Nylon 24SR Sweep Brush
There was an error adding item(s) to the cart. Please try again.
66019
45" (114cm) Cyl Poly 8DR Sweep Brush
There was an error adding item(s) to the cart. Please try again.
1041102
26" (66cm) Side Nylon Sweep Brush
There was an error adding item(s) to the cart. Please try again.
1027380
26" (66cm) Side Polypro Sweep Brush
There was an error adding item(s) to the cart. Please try again.
398279
VR, ELEMENT, FLTR, AIR, SAFETY
There was an error adding item(s) to the cart. Please try again.
1061961
TIRE ASSY, SOLID, 20.8 X 5.0, W/ BRG
There was an error adding item(s) to the cart. Please try again.
1032515
TIRE ASSY, PNEU, 21 X 6.0-12 4.5BC, CE
There was an error adding item(s) to the cart. Please try again.
1005229
TIRE ASSY, PNEU, 570/500-8 4.5BC 5BOLT
There was an error adding item(s) to the cart. Please try again.
1053523
TIRE ASSY, FOAM-FILLED, 125/75-08 5BOLT
There was an error adding item(s) to the cart. Please try again.
S30 DOCUMENTATION
Intelligent Insights
IRIS® Asset Manager offers intelligent insights and key performance metrics to help manage and monitor your machines and make informed decisions to drive your cleaning operations forward.
S30 RELATED MACHINES
S20
Compact Ride-On Sweeper
Picks up everything from dust to broken glass in malls, warehouses and industrial facilities, and has a compact size that maneuvers easily. Help manage silica dust with our optional HEPA filtration system.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 163680 sq ft / 15120 sq m
Hopper Capacity
11.0 cubic ft / 310 L
Cleaning Path
50 in / 1270 mm, 62 in / 1575 mm
Sound Level
As low as 81 dBA +/- 1.7 dBA (D/G/LP), 80 dBA +/- 1.7 dBA (Battery)
S16
Battery-Powered Compact Ride-On Sweeper
This productive and versatile battery-powered sweeper delivers exceptional sweeping performance across a variety of surfaces and debris types.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 111320 sq ft / 10340 sq m (single side brush), Up to 145200 sq ft / 13490 sq m (dual side brush)
Hopper Capacity
5.3 cubic ft / 150 L
Cleaning Path
46 in / 1, 170 mm (Single Side Brush), 60 in / 1, 520 mm (Dual Side Brush)
Sound Level
As low as 67 dBA
800
Industrial Ride-On Sweeper
This ride-on sweeper's massive steel frame withstands harsh indoor/outdoors environments while consistently sweeping bulky debris, steel powder, rocks and glass. Help manage silica dust with our optional HEPA filtration system.
There was an error adding item(s) to the cart. Please try again.
Estimated Coverage/Productivity
Up to 360800 sq ft / 33320 sq m
Hopper Capacity
30 cubic ft / 0.8 cubic m
Cleaning Path
66 in / 1675 mm, 82 in /2080 mm
Sound Level
As low as 81 dBA +/- 3 dBA (Gas/LP), 83 dBA +/- 3 dBA
S30 SERVICE
Keeping You Up & Running
Keep your Tennant equipment running at peak performance, limit downtime and reduce your overall cost to clean with a TennantTrue® Service and Maintenance Plan.
REQUEST INFO
* Ultra-Web is a registered trademark of Donaldson Company.
